SOBANSKI’S SEED DRILL SZU

27.11.2015 | Paweł Cuprych

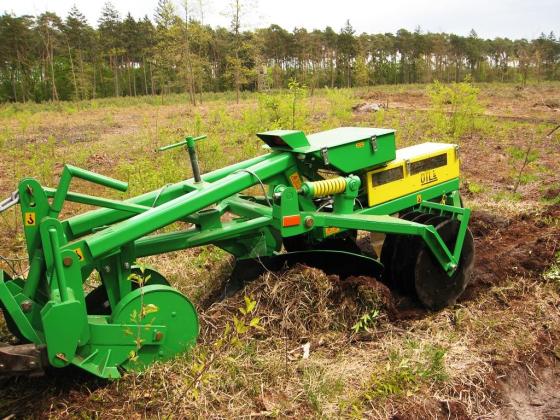

SZU Seed Drill has been designed for sowing pine during operations with reforestation. The drill allows for simultaneous sowing of oak nuts and other species' seeds, for example lime-tree, sycamore or beech on clearcutting areas or post-agricultural grounds together with ploughing performed with LPz-OTL or P1T plough.

DOWNLOAD CARD FROM A CATALOG

Sowing is possible thanks to assembling a special frame with the seed drill to a plough. Thanks to this a simultaneous ploughing together with sowing of seeds proper for a given area takes place – from 5 assembled seed containers.

Thanks to proper design solutions of the power train to separate sowing elements there is a possibility of temporary switching off of a number of drills – through disengaging drive motors from the tractor's cabin. A part of seeds are sown on a depth of 5 – 8 cm (from two containers) and the rest of seeds are sown on the ground surface with a possibility of a slight covering or rolling.

In the technology of seeding with a SZU seed drill it is advised not to perform subsoiling as it has a negative impact on the plantation's yield.

TECHNICAL PARAMETERS

Parameter	LPz-OTL plough version	P1T plough version	3-point hitch version
Length	3450 mm	3000 mm	2040 mm
Width	1450 mm	1450 mm	1000 mm
Height (max / stable elements)	1400 mm	1610 mm / 1390 mm	1610 mm / 1390 mm
Weight	510 kg	480 kg	450 kg
Seeder's drive	2 x electric motor
Voltage	=12 V
Motor's revolutions	54 rpm
Main seed drill
Container's capacity	58 dm ³
Drill type	drum
Number of seed pockets	2 (1) pcs
Small seed drill
Number	4 pcs
Type	TP – 92/P
Containers' capacity	4 x 2,5 dm³
Device type	brush
Scoop device	skid
Press device	wheel
Attendance	Tractor's operator
