WINTER SNOW PLOW ZPW

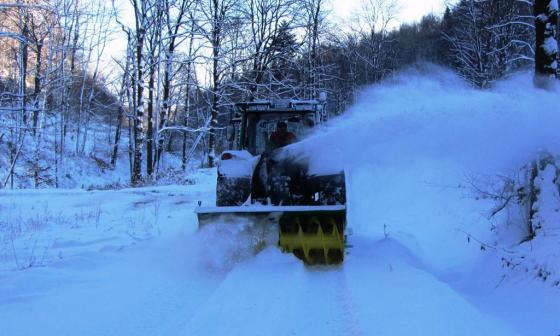

ZPW plow is a snow blower hinged on a three-point hitch of tractors and has been designed for a maintenance of roads of a width up to 2,6 m during winter season.
Thanks to a built-in hydraulic system and specially formed rotor the device shreds accumulated snow and a swivel chute allows for adjustment of the direction and distance of throwing snow. The device is hinged on and powered from standard tractors with power rating of minimum 110 HP.
The plow should not work in frozen or very wet and heavy snow. In such situation a hydraulic protection of the feeders may be executed and work of the plow will be stopped.
The rotor is powered from tractor's PTO and feeders are powered from tractor's hydraulic output. The ZPW plow can be hinged on both front or rear three point-hitch based on tractor's traction capabilities and tractor's drive.
TECHNICAL PARAMETERS
|
Parameter |
Value |
|
Length |
1660 mm |
|
Width |
2600 mm |
|
Height: |
2120 mm |
|
Weight |
1080 kg |
|
Attendance |
1 person |
|
Tractor's power |
110 KM |
|
PTO shaft's revolutions |
1000 rpm |
|
Number of worm shafts |
2 pcs |
|
Diameter of worm shafts |
810 mm |
|
Revolutions of worm shafts |
200 do 360 rpm |
|
Rotors' drive |
Hydraulic |
|
Pressure in hydraulic system |
16,0 MPa |
|
Required flow in hydraulic system:
minimum |
Approximately 50 dm3/min |
|
Number of chute rotors |
1 pc |
|
Rotor's diameter |
706 mm |
|
Rotor's revolutions |
1000 rpm |
|
Rotor's powered by |
PTO shaft |
|
Working width |
2300 mm |
|
Working speed |
1,0 to 10,0 km/h |
