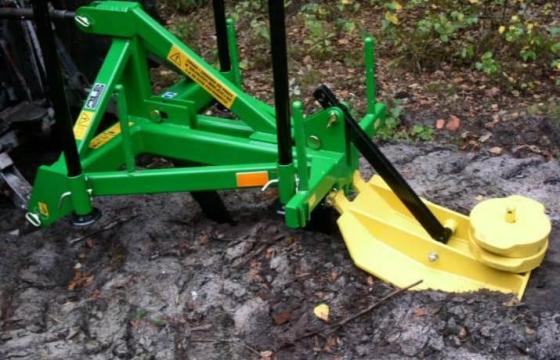

ONE-ELEMENT SUBSOILER GT
One-element subsoiler GJ has been designed for loosening and breaking up soil on tree nurseries and on clearcutting areas. Maximum working depth is 500 mm.
A simple construction of the subsoiler causes that operating with the device is easy, however it can only be used on areas free from big surface rocks. Due to its construction the subsoiler should not be used with tractors that have a power rating over 73 kw (100 HP). The subsoiler is mounted to a tractor's three-point hitch which guarantees its proper work but the operation must be performed by an operator in a smooth way to avoid overstrains of the device. The bottom rating of the tractor's power depends on the type and moisture level of soil and from the device's basic technical parameters.
TECHNICAL PARAMETERS
|
Width |
1120 mm |
|
Length |
1800 mm |
|
Height |
1400 mm |
|
Weight |
290 kg |
|
Soil loosening depth |
280 – 500 mm |
|
Number of weights |
2 pcs |
|
Number of working elements |
1 pc |
|
Attendance |
Tractor's operator |
|
Tractor's power |
max. 73 kW (100 HP) |
