FOREST RIDGER PL U049

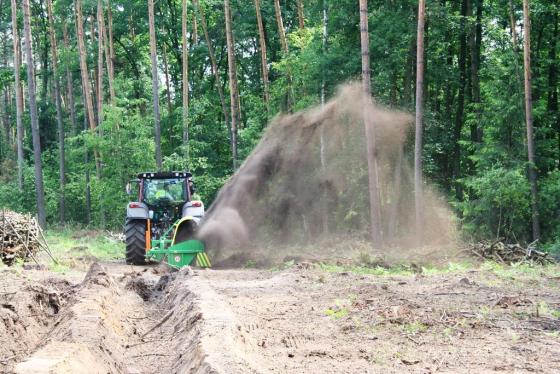

The ridger has been designed to form ridges in preparation for planting on temporary wetlands. The rotating head grinds and throws the excavated soil aside of a trapezium shaped trench simultaneously forming a ridge. Trenches prepared by the ridger improve water drainage and planting takes place on the top of the formed ridges.
The device is powered from tractor's PTO shaft. After lifting up the side shield which is responsible for forming the ridge, the machine can be used for preparation of fire protection strips or burying fires. There is as well a possibility of using the ridger to clean existing or excavate new road drainage trenches.
Available two types of rotors:
- with cemented carbide knives
- with standard knives made of construction steel.
TECHNICAL PARAMETERS
|
Parameters |
Value |
|
Length |
1590 mm |
|
Width |
1525 mm |
|
Height |
1340 mm |
|
Weight |
720 kg |
|
Trench depth |
up to 500 mm |
|
Trench bottom width |
150 mm |
|
Trench top width |
up to 650 mm |
|
Ridge bottom width |
up to 900 mm |
|
Ridge height |
up to 400 mm |
|
Working depth adjustment |
continuous (through adjustment of tractor's 3-point hitch) |
|
Working head diameter (max) |
980 mm |
|
Bevel gear ratio |
1:2,45 |
|
PTO shaft's revolutions |
540 rpm |
|
Working head's revolutions |
220 rpm |
|
Working speed |
max. 800 m/h |
|
Efficiency |
ca. 0,3 ha/8h |
|
Attendance |
Tractor's operator |
