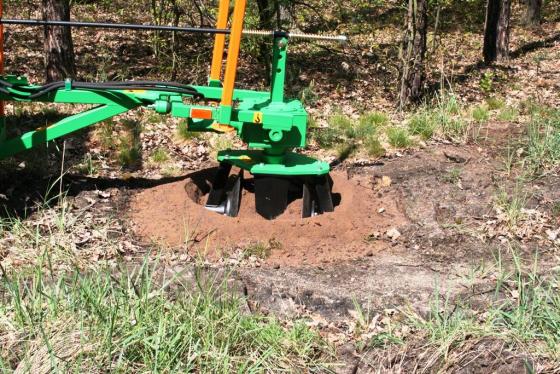

AUGER WPG
WPG auger has been mainly designed for forestry use. Its small size and weight make the device effective in difficult areas.
The device makes places for planting or drills holes of a diameter varying from 200 mm to 400 mm.
Depending on existing soil conditions, amount of weeds growing on the surface, diameter of required places or holes and the intervals between them, the output can be up to 800 per 8 hours.
The auger can be applied not only for planting but also for sign boards erecting or for fixing fences.
On individual requests the auger can be made in diameters different than 200 mm. Thanks to an application of a hydraulic drive element it is possible to work with the auger in two directions which eliminates the problem of the drill getting jammed on roots and rocks.
TECHNICAL PARAMETERS
|
Parameter |
Value |
|
Type |
Hydraulic, mounted on tractor's three-point hitch |
|
Tractor's type |
6-9 kN class |
|
Drive transmission |
Tractor's hydraulic system |
|
Length / width / height |
2510 mm |
|
Width |
1010 mm |
|
Height |
1600 mm |
|
Diameter/depth of places |
Up to Ø80/50 cm |
|
Drilled hole's diameter |
Ø200 mm/Ø400 mm or other |
|
Drilled hole's depth |
Up to 80 cm |
|
Weight with drill Ø20 cm |
295 kg |
|
Daily output |
300-800 places / holes |
|
Attendance |
Tractor's operator |
