double-disc active plough P2Tc

27.11.2015 | Paweł Cuprych

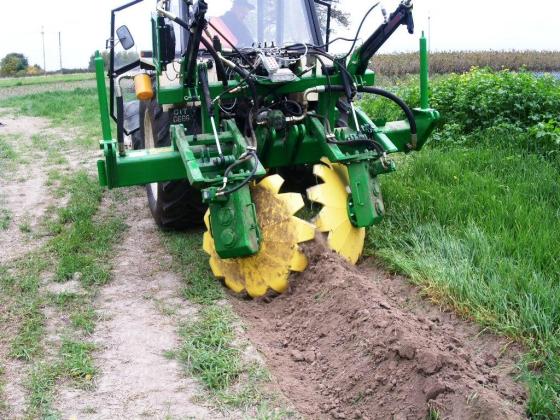

The double-disc active plough equipped in a subsoiler and own hydraulic system is designed for a complex pre-planting soil cultivation. It combines advantages of an active plough and cultivation with a soil ripper. The double-disc active plough with a subsoiler reduces costs in preparing soil for planting.

DOWNLOAD CARD FROM A CATALOG

A main advantage of the active disc plough is leaving the fertile soil layer in almost intact condition, and shoveling only the top layer that is dry and loose. On periodic wetlands there is a possibility of forming ridges after adjustment of the angle of the transmission box and after disassembling the subsoiler.

A single work ride allows for:

furrows formation
subsoiling up to 500 mm
pulverizing of the furrow
formation of ridges

Production options:

- with subsoiler

- without subsoiler

- either with own hydraulic system

- or powered from tractor's hydraulic system

The plough can be aggregated with LKT-70 skidders.

TECHNICAL PARAMETERS

Type	active
Kind	hinged
Length	3300 mm
Height	1850 mm
Width	2650 mm
Weight ( without weights )	2070 kg
Weights' weight	480 kg
Milling discs number	2 pcs
Disc angle adjustment	17°,32°,47°
Furrow width	Up to 600 mm
Furrow depth	Up to 250 mm
Milling disc diameter	970 mm
Disc rpm	ca. 45 rpm
Disc drive	hydraulic system
Subsoiling depth	max 500 mm
Subsoiling depth adjustment	skid
Hydraulic pump	109L-L-4H HYVA
Hydraulic motors	MS HYDRAULIC MS160
Work efficiency	max. 4 ha
Attendance	Tractor's operator
Tractor's power	min 120 kW (160 KM)
